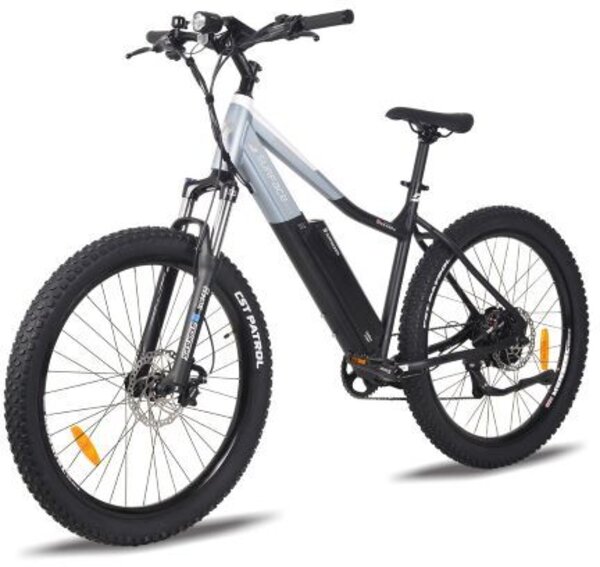

Surface 604 Shred

Surface 604 Shred
$2,999.00 - $3,229.00
$3,399.99 - $3,799.99
Please select options

Details

POWERFUL 500W MOTOR
Purpose built for top speed 500W 48V electric motor. Feel the surge of quiet, consistent power distribution at higher speeds - vibration-free.

Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller, so Shred delivers unmatched torque and speed.

Watch out for other riders as you zip pass them.

WHISPER SMOOTH TORQUE SENSING PEDAL ASSIST
Because an electric bike is only as good as it’s power distribution.

Shred’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.

Gone are the days of simple cadence sensors!

Custom drop out design delivers whisper smooth torque sensor sensation at any assist level.

In fact, you’ll swear it’s as so smooth as a mid-drive motor.

REDESIGNED COCKPIT
Now with an extra-large colour LCD display to show all vital information and provide added security.

SURFACE604 Color LCD Display with Micro USB Jack
Bigger display: 3.5" for 2021 vs. 3.2" for 2020.

Set a passcode and the bike won’t start without it, just like your phone.

LONG RANGE BATTERY
Offering two high-capacity battery options:



48V14ah (672wh) 3500mah cell size

Samsung Cells 18650, Made in Korea, USB Plug, capacity indicator button

Range up to 45 Miles (72 Kms), Weight: 7.59 LBS (3.45 KG)

48V20ah (960wh) 5000mah cell size (Same as in Tesla)

Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button

Range up to 65 Miles (105 Kms), Weight: 10.23 LBS (4.65 KG)

*Proprietary design

Key Tech Specs:

SR Suntour XCM 32, 29ER suspension fork (100mm with axle thru hub)

CST Patrol 27.5" x 2.8" tire

Tektro Dorado hydraulic quad piston disc brakes EMTB specific, with motor inhibitors

SRAM X5 9-speed drivetrain

Torque sensor system

Selle Royale ergonomic gel saddle

Large fixed-color LED display with micro USB jack

Powerful Buchel LED headlight

Shred Specifications:

MOTOR

eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

UPGRADED MOTOR WIRE HARNESS

30Ah, can handle up to 120C current

DRIVE MODE

Drop Out Torque Sensing Pedal Assist with a Throttle

TORQUE

65Nm

THROTTLE

Thumb Push Activated Throttle

CONTROLLER

SURFACE604 Designed 12 MOS 48V 500W 17Ah, Smart

TOP SPEED

32kmh*, Comes as Class 2

BATTERY

Included: 48V 14Ah / 672Wh

Samsung lithium-ion 18650 cells

Upgrade option: 48V 20Ah / 960Wh

Samsung lithium-ion 21700 cells

BATTERY RANGE

Upto 72km with a 48V14Ah Battery

Upto 105km with a 48V20Ah Battery

BATTERY CHARGE TIME

3-4 Hours for a Full Charge from Empty

DISPLAY TYPE (NEW)

SURFACE604 Color LCD Display with Micro USB Jack

Bigger display: 3.5" for 2021 vs. 3.2" for 2020

LIGHTS

Büchel Headlight, Pre-Wired To Connect Rear Stop Light

FORK UPGRADED SUSPENSION

SR SUNTOUR XCM 32. 29er, 100mm with Axle Thru Hub

MOTOR WIRE HARNESS - UPGRADED

30Ah, can handle up to 120C current

DERAILLEUR

SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings

CASSETTE

SRAM 12-34T

SHIFT LEVERS

SRAM X5 Trigger Shift

BRAKES

TEKTRO Dorado eMTB Specific Hydraulic Disc, Quad Piston with Motor Inhibitors

CRANK SET

SAMOX 38T Front Sprocket, 170mm Crank Arms

ROTORS

180mm Front/Rear x 2.34mm thick

BOTTOM BRACKET

SAMOX Sealed Bottom Bracket

FRAME TYPE

Tapered Headtube, Custom Reinforced Battery Mounts,

Internal Cable Routing, Post Mount Brakes

FRAME MATERIAL

6061 Aluminum Alloy

STEM

NEW: eMTB specific Ergotec Bass 31.8mm

HEAD SET

SAMOX Tapered with Sealed Bearings 1 1/8?- 1 1/2?

HANDLEBAR

PROMAX Aluminum, 30mm Rise With 9° Backsweep and 720mm Wide

PEDALS

WELLGO Platform, with Die Casting Body

CHAIN

KMC 9-Speed

SEAT POST DIAMETER

30.4mm

WHEELS/TIRES

CST Patrol 27.5" x 2.8"

RIMS

Aluminum Alloy Double Wall Rim, 27.5?x13Gx36H

FRONT HUBS

1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR

KICKSTAND

Adjustable Heavy-Duty Aluminum

STANDOVER HEIGHT

Small-Medium: 28.5” (724mm)

Medium-Large: 30” (762mm)

RECOMMENDED RIDER HEIGHT

Frame Sizes: S/M - 17.5", M/L - 19.5"

For Riders: S/M 5’2”-5’7”, M/L 5’8” - 8’8”

NET WEIGHT (INCLUDING BATTERY)

61-65 lbs

WEIGHT CAPACITY

285lbs (130kg)

OTHER

Adjustable Kickstand, Chain Guide, Water Bottle Bosses

New paint scheme: Available in Black and White two-tones

OPTIONAL UPGRADE FEATURES

21700 Samsung Cells 48V20Ah Battery, NCX Suspension Seat Post, Rear Rack, Rear Led Light

Part Numbers

Option Store SKU
14amp Shredsmall14
20amp Shredsmall20
